Bike powered Fiat 500

I've been searching for a nice build with specs for a motorcycle powered Fiat 500.
Although there are no 'bolt-in' kits available like for the Mini, this seems to be a very nice job.












Specs:

The engine is a 913cc Honda Fireblade (super bike) standard form about 120 to 130 bhp. I have done some mods and believe I have about 150 bhp now

The engine is turned around and the sprocket has been removed and a special adaptor bolts to the engine (I just could not bring myself to use a chain in a car )a tiny prop shaft meets up to a sierra 4x4 LSD diff all of this sits in a very light weight sub frame which incorporates the double wishbone suspension and coil over gas shocks, this all bolts up to the car on mountings points so the body can be raised up for any major work.

The brakes are disc all round front suspension is now double wishbone and coil over gas shocks all mounted on a small sub frame which also holds the 126 steering rack in place.

I have tried to retain as much of the fiat 500 as I could I did not want wings and spoilers every where I have had to modify the wheel arches to get some decent rubber for the huge power increase but its turned out just as I wanted it .

Performance is breath taking as I have built the car I have tried to keep the weight down to a minimum, the car is much lighter than std.
0 -60 mph is under 4 secs top speed tops out about 110mph but that’s fast enough for a 500 at 11000 rpm. But the diff can be changed for different use.

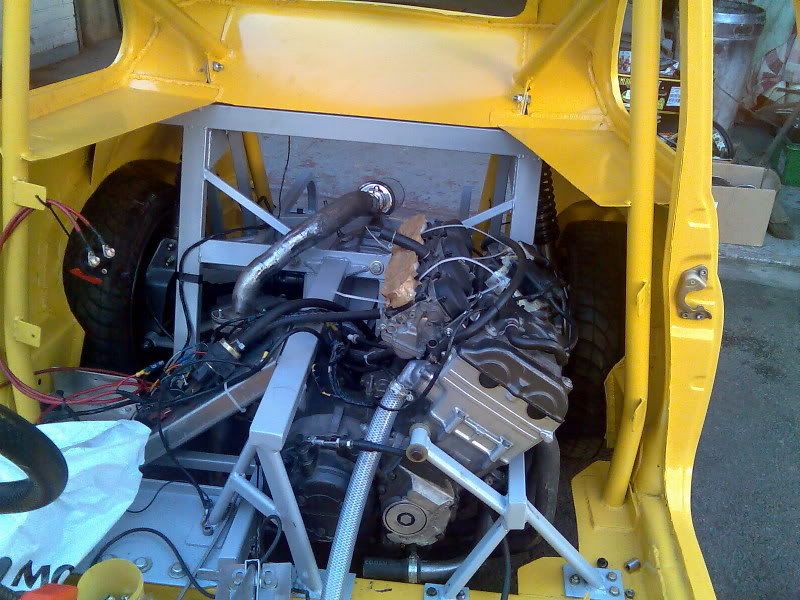

Here are some more pictures , its hard to show the mechanical bits now that it is built so there are some pics mid build.

Source: fiat500club.org

Porsche Panamera - Official pics

Full Carbon R8 - PPI Razor GTR

The GTR takes the R8 to yet another level, with more power, reduced weight, and improved aerodynamics.

PPI has fitted a supercharger to the 4.2L V8 which now puts out 580 horsepower and 443 lb-ft torque, good for a 3.7-second sprint to 100 km/h and a top speed of 206 mph. The widebody kit is constructed completely of carbon fiber and feeds cool air to the brakes and radiators, while the engine cover, also constructed of the lightweight material, includes integrated ram air inlets. The wider body also allows for wider rims and tires -- lightweight MAG11 forged wheels wrapped with Michelin Pilot Sport 2 rubber. Other performance upgrades include a KW coilover suspension, and larger brakes: 15-inch discs with six-piston calipers in the front, and 14-inch discs in the rear. Carbon fiber also coats the interior, alongside custom leather seats and a PPI steering wheel.

Performance

Following the introduction of the wildly successful PPI R8 RAZOR at last year's Essen Motor Show, PPI Automotive Design GmbH have used all its knowledge from the past year in competition, closed road races, open road races, and research and development in the wind channel, autobahn and track testing, to create a truly inspired production car. The Audi specialist turned its focus on optimizing the power-to-weight ratio of the Audi R8 while simultaneously strengthening the motor, increasing performance, improving handling dynamics, and managing to reduce the weight of the Audi R8.

The essential part of the motor alteration is the incorporation of a specially engineered supercharger. In addition, a ram-charged sport air filter system and a high performance exhaust system made of stainless steel have been designed and added specifically to work in conjunction with the supercharger system. These components are precisely adjusted to each other with the help of a new ignition map for motor electronics.

The result, after this extensive modification, is a car with 580 hp / 427 kW at 7,400 rpm, a maximum torque of 600 Nm at 6,200 rpm at its disposal, and a weight decrease of 250 kg over its serial counterpart (serial curb weight 1,580 kg). Providing the PPI RAZOR GTR with the ability to achieve speeds from 0 to 100 km/h in only 3.7 seconds with a maximum top speed of 332 km/h. This insures the proper performance to easily meet the demands of its motorsports and enthusiast clientele.

Aerodynamics

In addition to the excellent driving performance, this PPI Supercar also has a striking widebody appearance with elaborate, wind tunnel tested aerodynamics. Special attention was paid to the reduction of the vehicle's weight, which was achieved by PPI's extensive use of the extremely light and high-strength formula 1 and aerospace-proven Carbon Fiber. All parts are made of this high-tech material, reducing weight and adding strength in the process.

The PPI RAZOR GTR front bumper replaces the serial bumper and the new design in conjunction with a specially engineered front diffuser, reduces lifting forces at the front axle. Larger air inlets in connection with a new full LED-headlight unit present the two-seater with an even more athletic face. More importantly, these air inlets feed the radiators with additional fresh air and channels through the new front hood to provide optimal cooling to the brake system. PPI sideskirts highlight the sporty profile of the GTR and also diffuses the airflow around the sides of the car for improved aerodynamic stability.

In order to perfectly balance out the down-force behaviour of the front-axle with the rear axle, PPI equips the RAZOR GTR with a special rear wing with an adjustable Gurney-flap. The motor cover, made of the light high-tech polycarbonate material Makrolon, also has specially designed Carbon Fiber ram-charged air inlets that replace the heavy OEM Engine cover and aid in cooling, ensuring the consistent performance of the RAZOR GTR. Aiding in the engine cooling, are the newly designed side blades, rear fenders and rear bumper allow for additional motor bay and exhaust cooling that, in conjunction with the Carbon Fiber rear diffuser, optimizes the airflow over and through the rear portion of this sharp performance car.

Handling

The overall appearance of the car is further enhanced by a new widebody skin to allow the PPI RAZOR GTR the proper structure to accommodate all the performance enhancements and wider wheels. The RAZOR GTR utilizes specially designed lightweight MAG11 forged PPI wheels. At the front, 10Jx19 MAG11 wheels with 255/35 ZR 19 Michelin Pilot Sport 2 tires are fitted and an impressive 11.5J x 20 MAG11 wheels with 325/25 ZR 20 Michelin Pilot Sport 2 tires are used at the rear. This wheel and tire-combination proves to be the optimal balance between comfort and control while maintaining proper road feedback for the driver.

PPI also developed a special high-performance braking system available only for the RAZOR GTR that can be identified by its metallic orange-colored brake callipers. The optimal deceleration and perfect pedal pressure control is now achieved by enlarged 6-piston callipers in connection with extra-large discs measuring 380 x 36 millimeters at the front and 356 x 32 mm discs at the rear axle providing greater pad surface contact area and heat dissipation.

Nothing has been left untouched, as is evidenced by the new coil over kit developed in conjunction with technology partner KW Automotive GmbH. This system has been specially adjusted to the needs of the PPI RAZOR GTR. And comes equipped with a Hydraulic Lift System, which can increase ground clearance by up to 45 millimeters if needed and therefore enables the driver to enter underground car parks or drive over speed bumps.










Source: worldcarfans
